LEAN AUDIO No.1 for PA Loudspeakers, Guitar Speakers, Bass Guitar Speakers & HI FI speakers

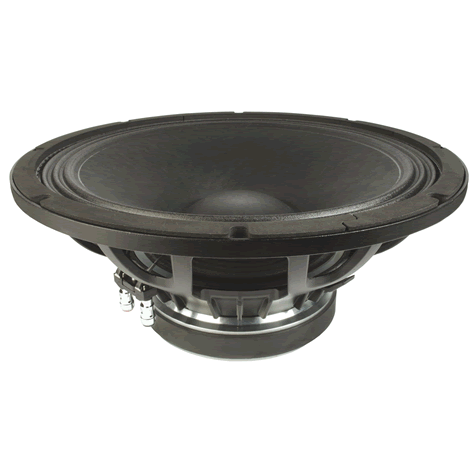

FaitalPRO FP15HP1010 15" 700 watt Ferrite Subwoofer

£217.34

Quantity:

FAITAL PRO 15HP1010 15" 700 W 8 Ohm Ferrite Speaker
15" loudspeaker, ideal for Bass Reflex, Horn loading and Band Pass subwoofers

•Nominal Diameter 15", 380 mm
•Overall Diameter 15.47", 393 mm
•Bolt Circle Diameter 14.72", 374 mm
•Baffle Cutout Diameter 13.94", 354 mm
•Depth 7.20", 183 mm
•Flange and Gasket Thickness 0.52", 13.3 mm
•Net Weight 9.75 Kg (21.51 lb)

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: Faital PRO 15HP1010

note: Price includes VAT

Technical Parameters
•Minimum Impedance 6.9 Ohm
•Nominal Impedance 8 Ohm
•Nominal Power Handling*** 700 W
•Maximum Power Handling**** 1,400 W
•Sensitivity (1W/1m) 96 dB
•Frequency Range 40 - 3150 Hz
•Voice Coil Diameter 4", 100 mm
•Winding Material Copper
•Former Material Glass Fiber
•Winding Depth 0.9", 23 mm
•Magnetic Gap Depth 0.41", 10.5 mm
•Flux Density 1.05 T


•Resonant Frequency (fs) 40 Hz
•DC Resistance (Re) 5.4 Ohm
•BL Product (BL) 21.7 N/A
•Diaphragm Mass inc. Airload (Mms) 131.7 grams
•Mechanical Compliance of Suspension (Cms) 0.12 mm/N
•Rms 2.45 Kg/s
•Electromagnetic Q (Qes) 0.4
•Mechanical Q (Qms) 13.7
•Total Q (Qts) 0.4
•Compliance Equivalent Volume (Vas) 3.31 ft³, 93.65 dm³
•Surface Area of Cone (Sd) 117.2"², 756.2 cm²
•Maximum Linear Excursion (Xmax)* 9.75 mm
•Xdamage** 21.9 mm
•Coil Inductance (Le) 1.7 mH
•Diaphragm mass (Mmd) 131.7 g
•Eta Zero 1.5 %


Please Choose:



  • 2 Units in Stock
