FaitalPRO 18HP1030 18" 1200 watt Ferrite Subwoofer

£304.90

Quantity:

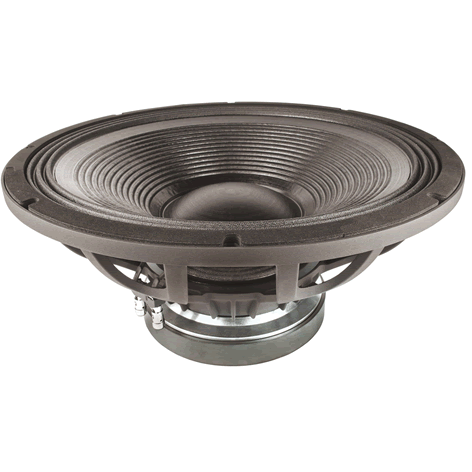

FAITAL PRO 18HP1030 18" 1200 W 8 Ohm Ferrite Speaker

•Nominal Diameter 18", 460 mm
•Overall Diameter 18.11", 460 mm
•Bolt Circle Diameter 17.32", 440 mm
•Baffle Cutout Diameter 16.57", 421 mm
•Depth 8.21", 208.5 mm
•Flange and Gasket Thickness 0.54", 13.7 mm
•Net Weight 12.1 Kg (26.68 lb)

Suitable for loading as a subwoofer in bass reflex and horn loaded speaker plans. Used in the VOID ACOUSTICS Staysis 218

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: Faita lPRO 18HP1030

note: Price includes VAT

Technical Parameters
•Minimum Impedance 6.4 Ohm
•Nominal Impedance 8 Ohm
•Nominal Power Handling*** 1200 W
•Maximum Power Handling**** 2400 W
•Sensitivity (1W/1m) 98 dB
•Frequency Range 35 - 1600 Hz
•Voice Coil Diameter 4", 100 mm
•Winding Material Copper
•Former Material Glass Fiber
•Winding Depth 1.14", 28.9 mm
•Magnetic Gap Depth 0.47", 12 mm
•Flux Density 1.1 T


•Resonant Frequency (fs) 35 Hz
•DC Resistance (Re) 5 Ohm
•BL Product (BL) 24.3 N/A
•Diaphragm Mass inc. Airload (Mms) 228.6 grams
•Mechanical Compliance of Suspension (Cms) 0.085 mm/N
•Rms 4.46 Kg/s
•Electromagnetic Q (Qes) 0.44
•Mechanical Q (Qms) 11.6
•Total Q (Qts) 0.43
•Compliance Equivalent Volume (Vas) 5.88 ft³, 166.4 dm³
•Surface Area of Cone (Sd) 182"², 1174 cm²
•Maximum Linear Excursion (Xmax)* 12.45 mm
•Xdamage** 23.1 mm
•Coil Inductance (Le) 1.37 mH
•Diaphragm mass (Mmd) 205.8 g
•Eta Zero 1.67 %


Please Choose:



  • 2 Units in Stock
