CIARE 1.38 TW2 20 watt 8ohm Silk Dome TWEETER

£29.65

Sold Out

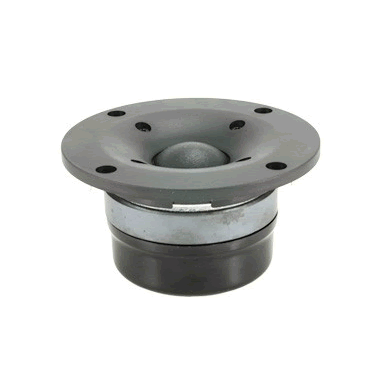

CIARE 1.38 TW2 20 watt 8ohm Silk Dome TWEETER

40 Watt Max Power
38 mm (1,5 in) voice coil, aluminium wire
Doped fabric diaphragm

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 1.38 TW2

note: Price includes VAT

General Specifications
Throat Diameter 1,5" - 38 mm
Nominal Impendance 8 Ohm
Voice coil resistance 5,8 Ohm ±0,4 Ohm
Minimum Impedance 5,5 Ohm ±0,7 Ohm
Power handling (AES) (*) 20 Watt
Max Power 40 Watt
Voice Coil Diameter 38 mm 1,50 dB
S.P.L. (1w, 1m) 98 dB ±1,5 dB
Nominal Fs 1000 Hz ±100 Hz
Flux Density 1 T ±0,08 T
Crossover Frequency 1 kHz 12 dB/oct
Frequency Range 1-18 kHz



Weight 1,1 kg
Overall Diameter 114 mm
Overall Depth 70 mm
Mounting holes number 3
Mounting holes diameter 5 mm
Mounting bolt diameter 103 mm
